Oil-free Air Compressor

Power:(11-250kw)

Capacity:1.2-42.5m³/min

Wroking pressure:0.8-1.0Mpa

Category: Air Compressor

Get A Quote

Product Description

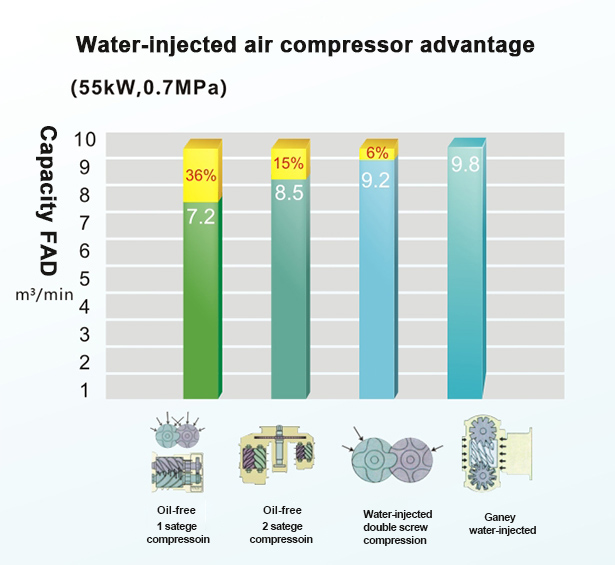

Oil-free Screw Air Compressor gets to the energy-saving standard of Oil-injected Types, and by at least 15% & 36% more energy-saving than the dry-compressing of double /single stage respectively.
Top Energy-saving: Apply Ganey’s exclusive tech, avoiding the low sliminess of water, & keeping the high displacement efficiency;
Top reliable: Worldwide initially exclusive anti-corrosive stainless-steel single screw air End with SKF bearing. ☆ Purely Oil-free: Water-injection Lubricates & seals the Air end, and apply the world-top patented sealing between the compressing & bearing’s chambers, assuring the whole system oil-free.
Less Maintenance: Water-injected lubrication makes the air end far more reliable than dry-compressing, minimizing the maintenance cost.
We are committed to delivering top air quality for critical applications including food and beverage processing, (petro) chemical processing, electronics manufacturing,medical&health care，textiles...

water-injected feature

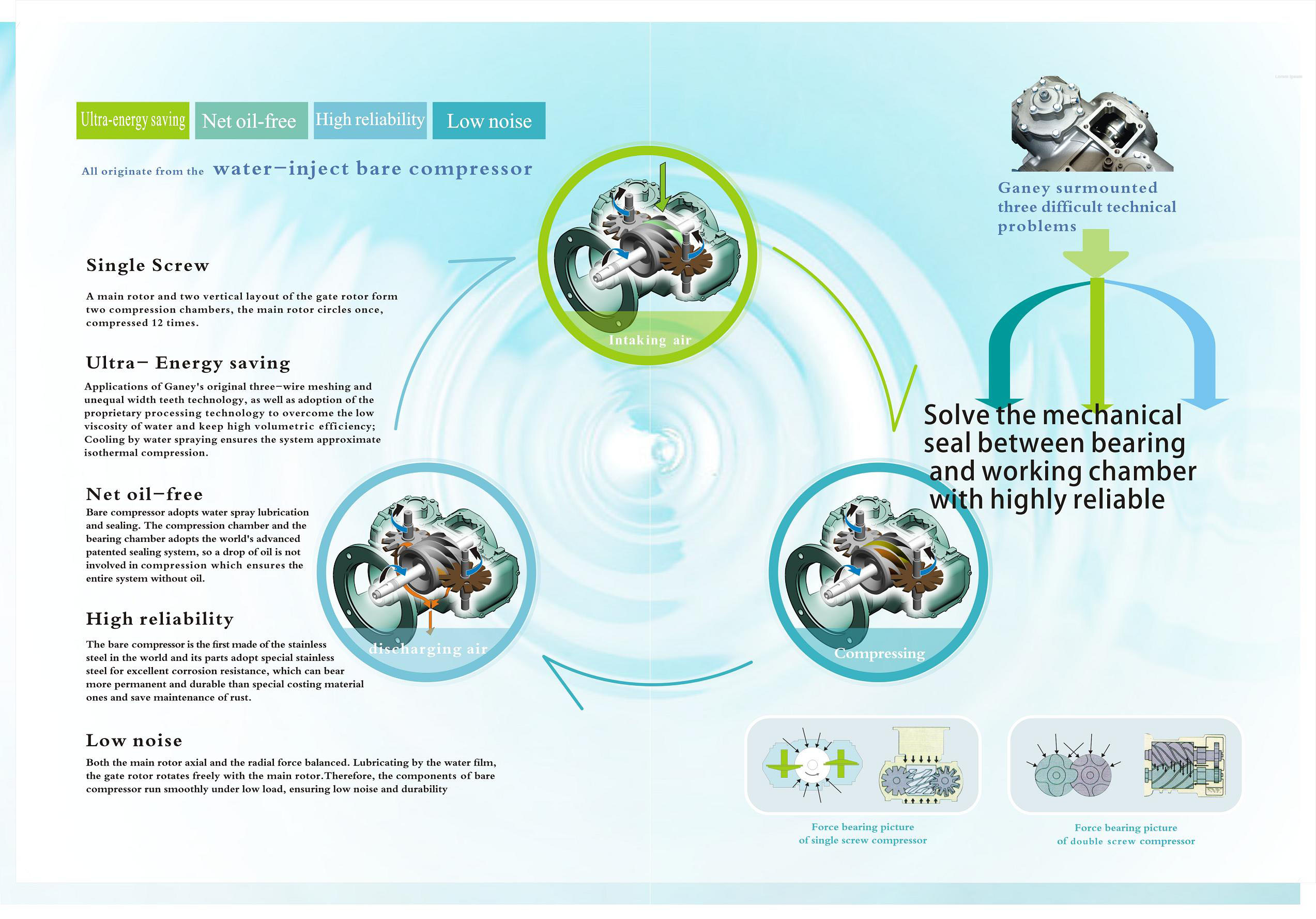

Water-injected advantage

oil-free air compressor

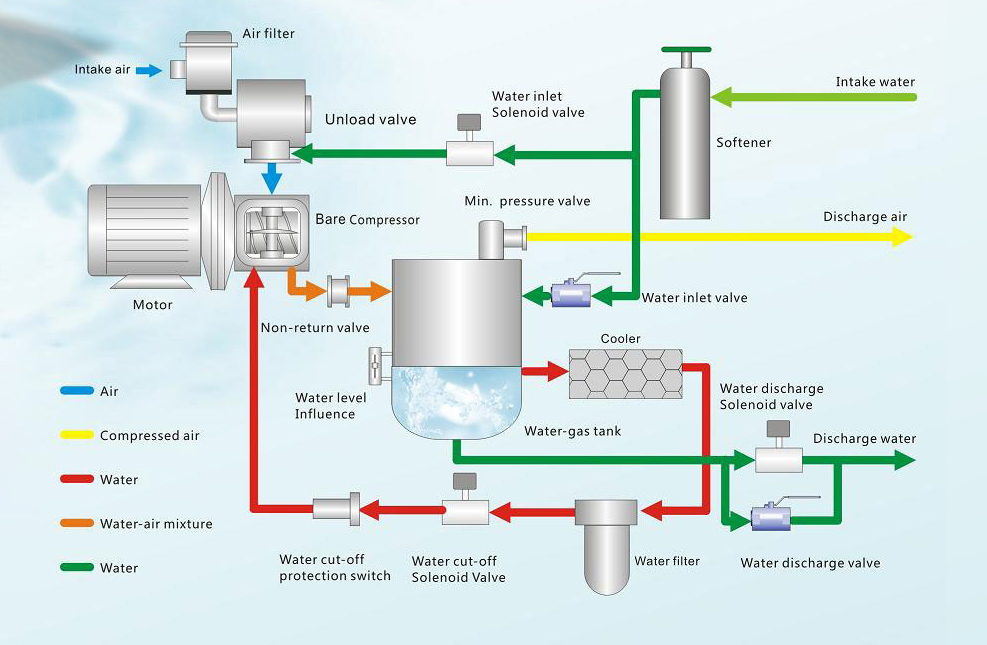

Water-injected system

oil-free compressor

Technical Parameters of Water-injected air compressor

Model	Working pressure	Capacity	Power	Noise	Weight	Outlet	Dimension
Model	Mpa	m³/min	kw	Db(A)	kg	Outlet	LWH mm
POGWFD22	0.7-0.8	1.7-3.5	22	75±3	600	G1	14008651150
POGWFD37	0.7-0.8	3.06.1	37	75±3	1030	G1¹/₂	185011781480
POGWD55	0.7-0.8	5.09.8	55	75±3	1630	G2	187013201480
POGWFD55	0.7-0.8	5.0-9.8	55	75±3	2280	G2	210014701700
POGWD75	0.7-0.8	6.5-13	75	75±3	2270	DN65	216013701705
POGWFD75	0.7-0.8	6.5-13	75	2920
POGWD90	0.7-0.8	8.0-16	90	2310
POGWD110	0.7-0.8	9.5-19.6	110	78±3	2690	DN80	260014701680
POGWD132	0.7-0.8	12.0-23.3	132	3090	2690	DN80	260014701680
POGWD160	0.7-0.8	14.5-29	160	82±4	2930	DN100	341018652190
POGWD200	0.7-0.8	18.0-36	200	2960
POGWD250	0.7-0.8	21.0-42.5	250	3620

Model	Working preissure	Capacity	Power	Noise	Weight	Outlet	Dimension
	Mpa	m3/min	kw	Db(A)	kg		LWH mm
OGWFD11	0.7	1.5	11	58	550	G1	14008651150
	0.8	1.4
	1	1.2
OGWFD15	0.7	2.6	15	75±3	552
	0.8	2.3
	1	2
OGWFD22	0.7	3.5	22		600
	0.8	3.2
	1	2.7
OGWFD30	0.7	5.2	30	75±3	1030	G11/2	185011781480
	0.8	5
	1	3.6
OGWFD37	0.7	6.1	37
	0.8	5.8
	1	5.1
OGWD45	0.7	7.6	45	75±3	1532	G2	187013201480
	0.8	7
	1	6
OGWD55	0.7	9.8	55		1630
	0.8	9.1
	1	8
OGWFD45	0.7	7.6	45	75±3	2200	G2	210014701700
	0.8	7
	1	6
OGWFD55	0.7	9.8	55		2280
	0.8	9.1
	1	8
OGW(F)D75	0.7	13	75	75±3	machine:2270 Cool system:650	DN65	machine :216013701705 cool system:145014501666
	0.8	12
	1	11
OGW(F)D90	0.7	16	90		machine:2310 cool system:800		machine:216013701705 cool system:162016201846
	0.8	15.8
	1	14
OGW(F)D110	0.7	19.6	110	78±3	machine:2695 cool system:800	DN80	machine:260014701680 cool system:162016201846
	0.8	18.9
	1	16.5
OGW(F)D132	0.7	23.3	132		machine:3090 cool system:800
	0.8	21.6
	1	19.3
OGWD160	0.7	29	160	82±4	2930	DN100	341018652190
	0.8	28
OGWD185	0.7	33.8	185		2960
	0.8	31.5
	1	28.8
OGWD200	0.7	36	200		2960
	0.8	34
	1	30
OGWD220	0.7	39	220		3320
	0.8	37
	1	33
OGWD250	0.7	42.5	250		3620
	0.8	41.5
	1	39
