Pressure vessel for air compressor

Volume V=0.33m³-60m³
Work pressure PW=0.81Mpa-6.4Mpa
Certification: as customer
Material:Carbon Steel,SUS

Get A Quote

Product Description

The pressure vessel is an important supporting produc, and also one of the main products of Zhejiang Kaishan Pressure Vessel Co., Ltd., which produces various types of pressure vessels of production volume V=0.33m³-60m³ and work pressure PW=0.81Mpa-6.4Mpa.

Welcome to contact us, so that we can produce various pressure vessels meeting your demands. The Company also can produce "U" steel seal pressure vessel produts of "ASME" specifications upon the request of customers.

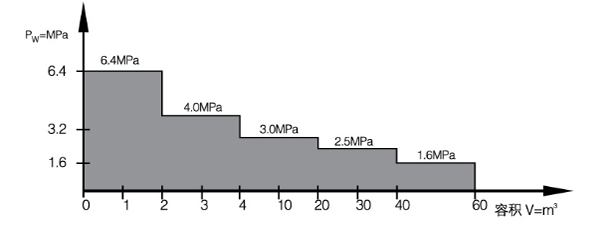

The range of pressuer volume of pressure vessel products of Kaishan Pressure Vessel Company at present

air tank

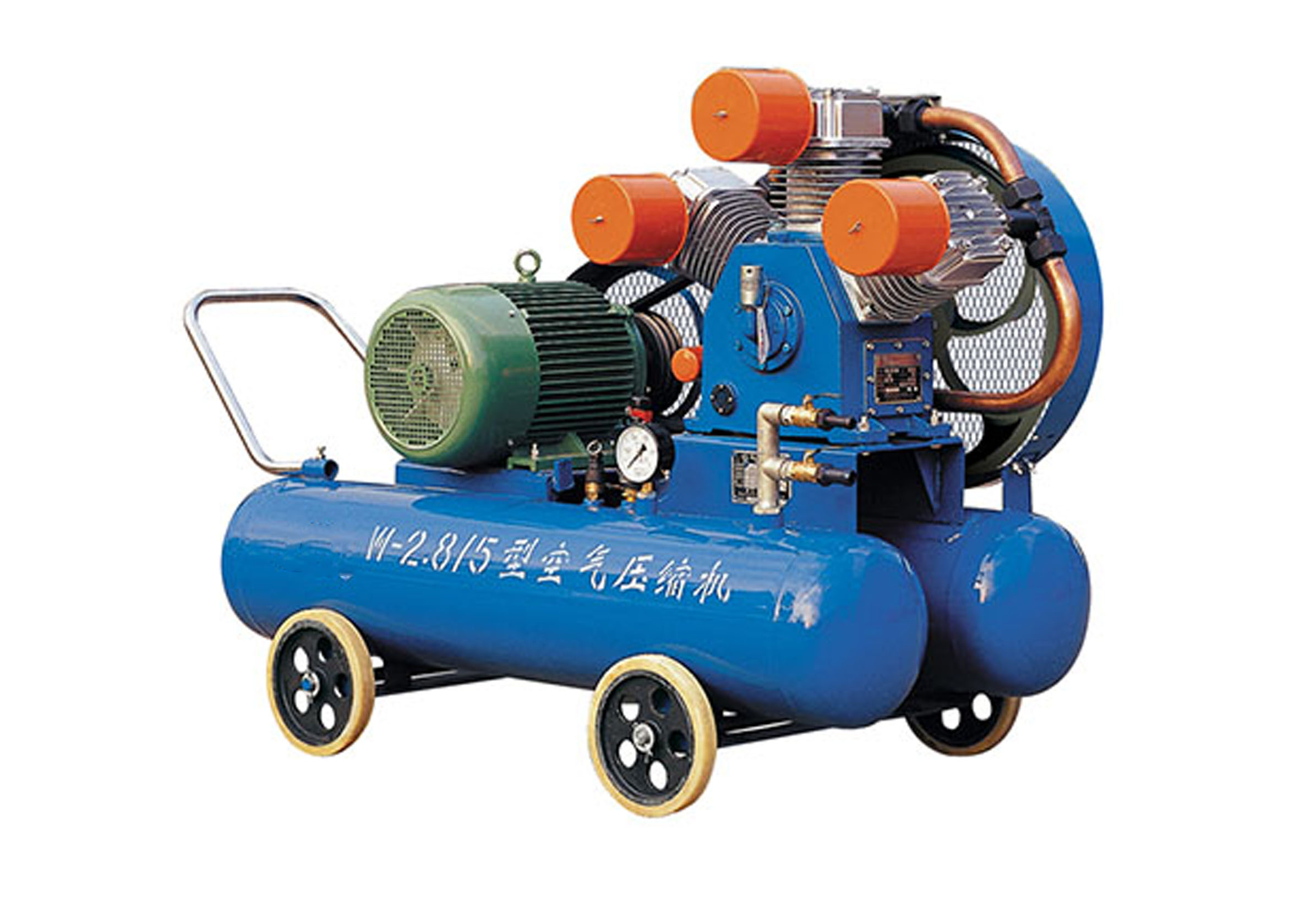

We can customize various pressure vessels for mines and industrial compressors, pressure vessels for screw-type air compressor oil-gas separators and vehicle braking and other non-standard pressure vessels.

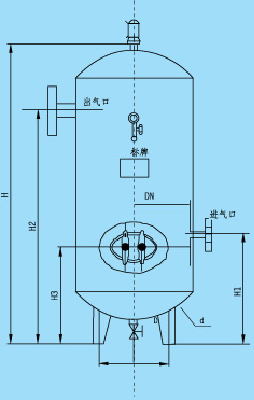

Schematic diagram of pressure vessel structure

air container

The above 6 m³

kaishan air receiver

The above 5 m³

Technical Parameters of Vertical Vessel

No.	Specification		Design temperature T℃	Hight H	Dimeter DN	Inlet			Outlet			Support		Relief valve connector	Drain connector	Weight
No.	volume m³	Pressure Mpa	Design temperature T℃	Hight H	Dimeter DN	Height H1	Flange d1	Thread d1	Height H1	Flange d2	Thread d2	Hole diameter d	Distnce D	Relief valve connector	Drain connector	kg
1	0.3	0.8	150	1560	550	520	DN40	Rp-1¹/₂	1216	DN40	Rp-1/2	20	400	Rp1	R1/2	127.5
2		1.0		1561		643			1217							127.5
3		1.3		1685		643			1392							157.4
4		1.6		1686	600	644			1393							156
5		2.5		1718	600	557			1407							200
6		3.0		1722	550	661			1411							196
7		3.5		1722	600	661			1141							239.4
8		4.0		1722	550	661			1411							237
9	0.5	0.8	150	2177	600	628	DN40		1840	DN40			420	Rp1		173.3
10		1.0		2177		628			1840							173.3
11		1.3		2178		669			1649							223
12		1.6		2178		669			1845							212
13		2.5		2215		658			1558							271
14		3.0		2215		675			1575							353
15	0.6	0.8	150	1843	700	750	DN80		1500	DN80	Rp1-1/2	24	490	Rp1		191
16		1.0		1858		750			1500							223
17		1.3		1859		750			1500							285.3
18		1.6		1859		750			1500							299
19		2.5		1863		683			1553							362
20		3.0		1863		700			1570							354.3
21		4.0		1863		700			1574							426
22	1.0	0.8	150.0	2240	800	610	DN80		1810	DN80		24.0	560	Rp1	R3/4	311
23		1.0		2240		612			1812							404
24		1.3		2340		710			1912							425
25		1.6		2343		712			1912							530
26		2.5		2571		733			1977							542
27		3.0		2571		733			1977							767
28		4.0		2571		733			1981							862
29	1.5	0.8	150	2357	1000	747	DN80	Rp2	1877	DN80	Rp2	24.0	700	Rp1-1/2		378.5
30		1.0		2357		747			1877							504
31		1.3		2359		748			1878							611
32		1.6		2363		750			1880							513
33		2.5		2450		763			1955							736
34		3.0		2450		767			1951							901
35		4.0		2450		771			1563							1125
36	2.0	0.8	150.0	2592	1100	837	DN80	Rp2	2088	DN80	Rp2	240	740			692
37		1.0		2592		837			2087							692
38		1.3		2694		838			2188							780
39		1.6		2698		840			2190							692
40		2.5		2785		769			1515							1398
41		3.0		2785		773			1519							1153
42		4.0		2785		781			1527							1763
43	2.5	0.8	150.0	2776	1200	846	DN100		2246	DN100		24	840			761
44		1.0		2778		847			2247							930
45		1.3		2782		851			2249							1080
46		1.6		2788		854			2254							932
47		2.5		2792		858			2259							1335
48		3.0		2796		860			2261							1442
49	3.0	0.8	150.0	2807	1300	852	DN100		2200	DN100		24	950			821
50		1.0		2809		856			2200							1004
51		1.3		2817		856			2202							1182
52		1.6		2830		920			2204							1145
53		2.5		3202		862			2200							1815
54		3.0		3206		864			2200							1920
55		3.5		3210		864			2200							2167
56		4.0		3210		866			2200							2362
57	4.0	0.8	150.0	3040	1400	930	DN100		2400	DN100		24	1050			1025
58		1.0		3042		930			2400							1237
59		1.3		3051		930			2513							1331
60		1.6		3051		930			2466							1371
61		2.5		3563		940			2814							2194
62		3.0		3567		942			2816							2320
63	5	0.8	150	3790	1400	866	DN100		3210	DN100		24	1050		R1	1190
64		1.0		3792		866			3211							1454
65		1.3		3796		666			3211							1876
66		1.6		3801		666			3211							1738
67	6	0.8	150	4440	1400	880	DN125		3840	DN125		24	1050		R1	1356
68		1.0		4442		881			3881							1697
69		1.3		4444		881			3881							2321
70		1.6		4451		881			3840							1870
71	8	0.8	150	4532	1600	972	DN150		3849	DN150		30	1200	Rp2	R1	2016
72		1.0		4532		949			3849							2404
73		1.3		4532		972			3849							2056
74		1.6		4532		972			3849							2717
75	10	0.8	150	4541	1800	1008	DN150		3808	DN150		30	1350	Rp2	R1	2344
76		1.0		4541		1008			3808							2039
77		1.3		4545		1008			3810							2860
78		1.6		4548		1010			3846							3103
79	12. 5	0.8	150	4640	2000	1090	DN150		3892	DN150		30	1500	Rp2	R1	2895
80		1.0		4640		1090			3892							3341
81		1.3		4646		1093			3844							3341
82		1.6		4648		1449			3846							4361
83	15	0.8	150	5389	2000	1090	DN150		4590	DN150		30	1500	Rp2	R1	3295
84		1.0		5389		1090			4590							2846
85		1.3		5393		1092			4592							3341
86		1.6		5395		1103			4593							4361
87	20	0.8	150	5973	2200	1225	DN200		5025	DN200		30	1650	Rp3	R1	5042
88		1.0		5978		1228			5028							4210
89		1.3		25981		1230			5030							4991
90		1.6		5986		1232			5032							4361
91	25	0.8	150	6249	2400	1190	DN200		5349	DN200		36	1800	Rp3	R1	5529
92		1.0		6249		1200			5350							5100
93		1.3		6249		1200			5350							5640
94		1.6		6253		1202			5354							4928
95	30	0.8	150	5698	2800	1298	DN200		4698	DN200		36	2100	Rp3	R1	4551
96		1.0		5700		1300			4698							5370
97		1.3		5704		1302			4700							6878
98		1.6		5708		1306			4704							8617
99	40	0.8	150	7348	2800	1298	DN200		6348	DN200		36	2100	Rp3	R1	5592
100		1.0	150	7352		1300			6350							6741
101		1.3		7360		1350			6360							8947
