KL510 Tophammer Drilling Rig

  • Drilling method: Tophammer

  • Hole diameter: 64 mm - 115 mm

  • Cabin: Yes

  • Maximum hole depth: 25 m

  • Engine: 240hp/179kW

  • Air capacity (FAD): 8.5m3/min

  • Air pressure:10Bar

Category: Surface drill rigs

Get A Quote

Product Description

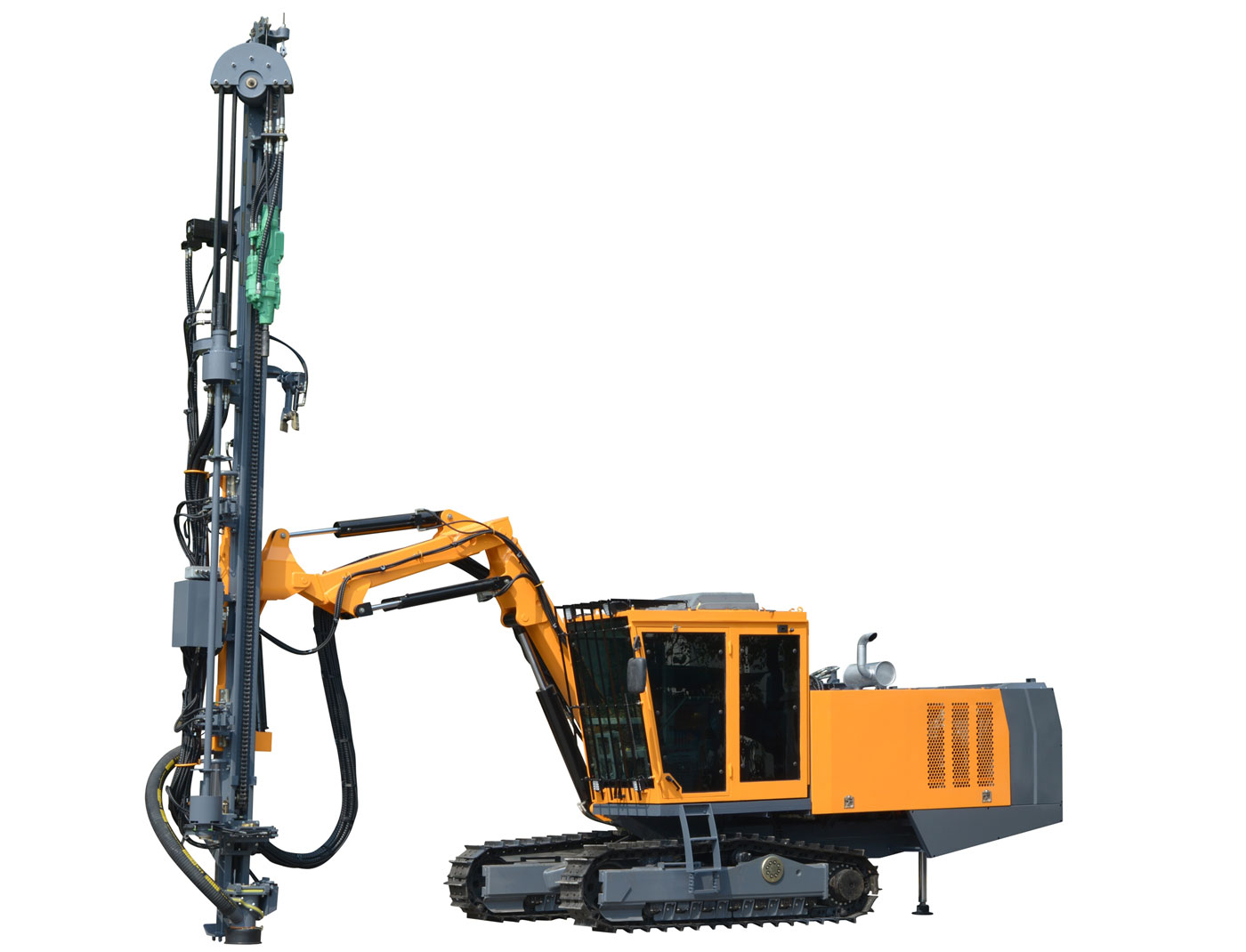

Kaishan KL510 tophammer drilling rig is equipped with standard drill rod of 45/38mm diameter to drill vertical, inclined and horizontal blast holes of 64-115 mm.

Drilling rig uses efficient Kaishan screw air compressor with fully independent intellectual property rights to realize environmental protection and energy saving.

The power unit of drilling rig is at the tail end of rotating rack in the upper layer to be symmetrical with drill boom and propelling beam, providing mutual balance, no matter which direction the drill boom and propelling beam are in.

Travelling, crawler balance and frame rotation of drilling rig can be equipped with optional wireless remote control function for operation outside the cab.

Technical Parameters of KL510 Tophammer Drilling Rig

Dimensions and Weight
Transportation size(long*width*high)10500*2450*3200mm
Weight16500kg
Hinged drill boom and chassis
Ground clearance430mm
Track rotation-
Drill hole covering area26.5㎡
Track oscillation10°up,10°down
Travelling speed0-3.5km/h
Climbing capacity≤30°
Traction force120kN
Power unit
EngineQSC8.3-C240-30
Number of cylinders6
Power179kW/2200rpm
Transmission typeFront-rear output
Hydraulic pump2×Variable piston pump+2×Gear pumps
Screw air compressorkaishan
Capacity8.5m3/min
Working pressure10bar
Fuel tank340L
Dust collection system
Dust collector ability and vacuum degree20m3/min; 1000mm Water column
Filter quantity/ material8pcs / fiber
Filter area7㎡
Hydraulic motor power7.5kW
Hydraulic Rock Drills
ModelHC95LQ
Impact power24kW
Maximum Impact Pressure180-200bar
Impact frequency48-57Hz
Maximum torque955Nm
Maximum rotation pressure210bar
Maximum rotation speed150rpm
Bit shank lubricationAir/ oil mist
Oil consumption for lubrication15 drop /min
Drilling diameter64-115mm
Hydraulic system
Traveling and drillingLoad sensing type
Filter precision10μm
Cooling capacity+50° Ambient temperature
Hydraulic oil tank250L
Drill boom, propelling beam and rod changer
Boom lift94°
Boom swing-18°/ 50°
Folding boom lift120°
Feed swing-93°/ 20° -20°/94°
Feed tilt120°
Feed extenstion1353mm
Rock drill stroke4150mm
Max. feed force19kN
Propulsion modeMotor-roller chain
Economic drilling depth25m
Number of rods6+1
Drill rod modelT45/T38*3360
Lubrication of drill rod threadair lubricating pump
Control System
TravellingHydraulic pilot control
Drill boomDirect hydraulic control
Rock drillingPilot control (Electric/ hydraulic)
Drilling controlVariable
Impact controlshock pressure control
Anti-stickingElectric/Hydraulic
Voltage24V, DC
Cabin
Cabin safetyMeet the requirement of FOPS and ROPS
Control functionDrilling, travelling, drill boom action and rod changer
SeatAdjustable
Air conditioningStandard
EntertainmentRadio+MP3
