KJ422 Hydraulic Tunnelling Drilling Rig
Drilling method:Tophammer
Hole diameter:42 mm - 102 mm
Climbing capacity:≤14°

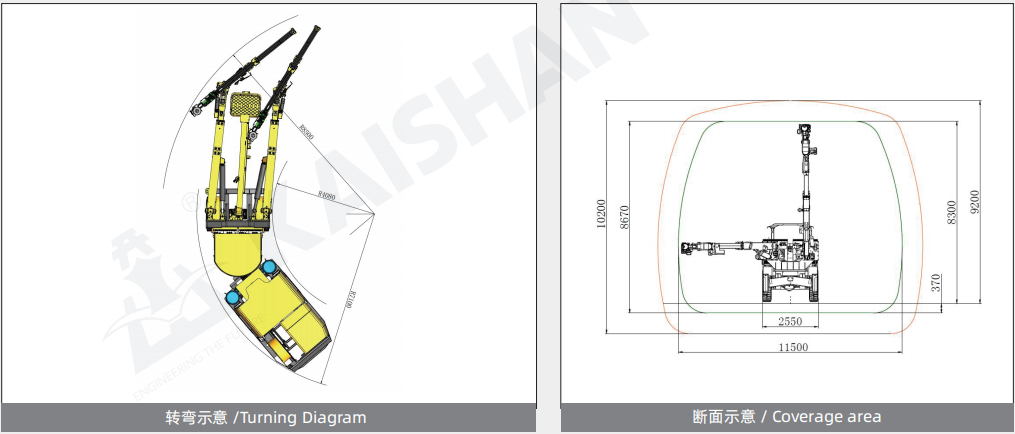

Operating range:4*4-11.5*9.2m
Engine:160hp/119kW
Category: Tunneling jumbos
Product Description
Drill the blast hole and rock bolting in a vertical,inclined and horizontal way; Suitably qualified for the drilling of tunnels whose section fals in the range of 16-95m².
The firm flexible boom is capable of optical coverage of the section;
360º rotation and self-leveling beam make drill positioning easy;
The boom can also be used for the drilling of lateral cross-cut and rock bolting;
The drill rig provides a good view for the operator;
Balanced layout and the articulated chassis of four-wheel drive ensure the flexible,fastand safe driving in the narrow tunnel;
The stepped piston is used for the high-frequency impacting rock drill and this can improve the transmission efficiency of impact wave and drilling speed and reduce the consumption of drilling tools and make it in good condition;
Technical Parameters of KJ422(CYTJ45/2) Tunneling Jumbo
