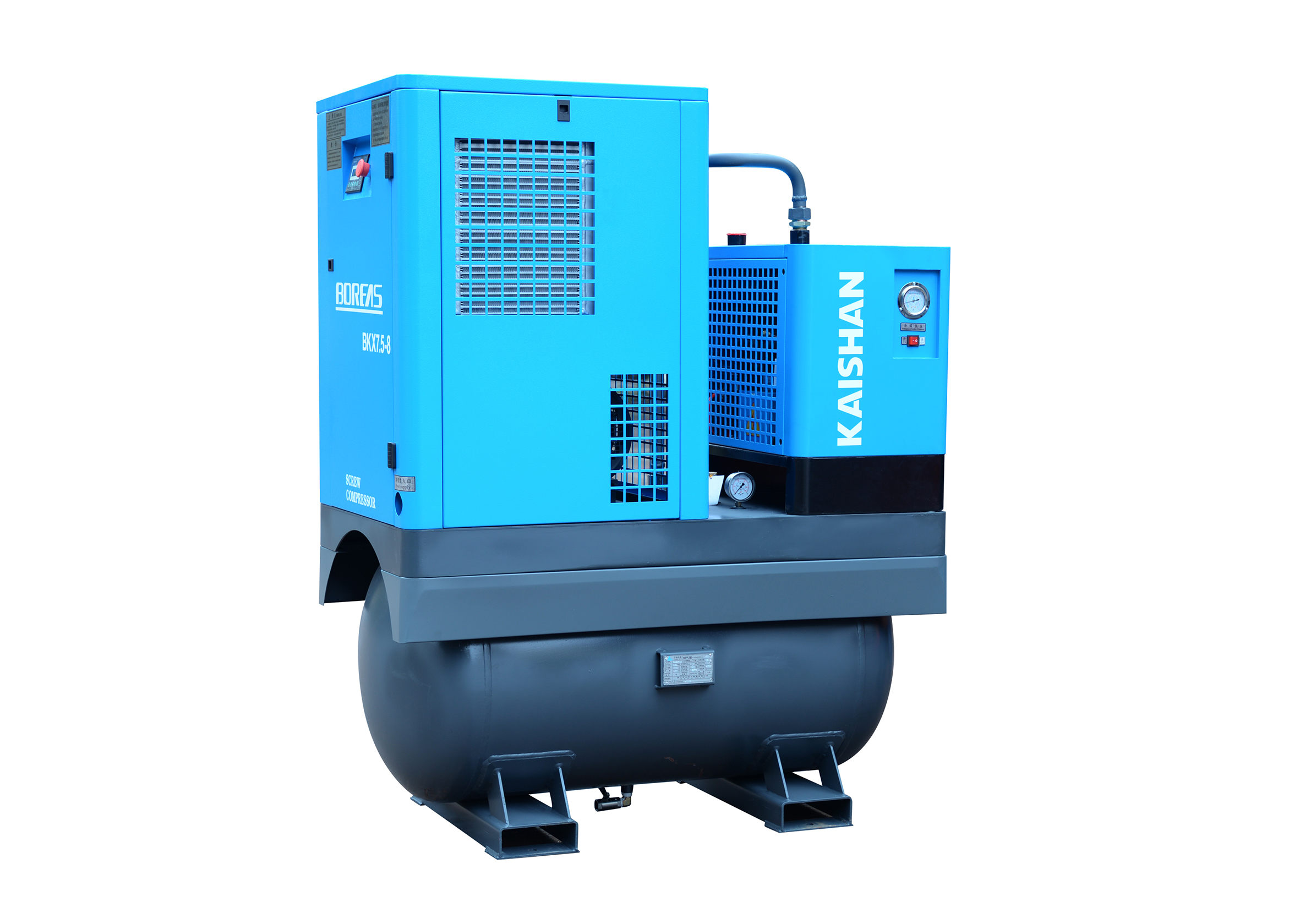

Boreas screw air compressor

Power:(7.5-132kw)

Capacity:1.2-26m3/min

Wroking pressure:0.8-1.3Mpa

Category: Air Compressor

Product Description

Boreas (Boreas, name of the wind god in Greek mythology) series screw compressors satisfy requirements of the masses of users in the field of low-power, low priced screw compressors.

Less quick-wear parts, compact structure and good stability.

Man-machine interface display control system.

Particularly convenient and simple to operate.

Running status clear at a glance.

Capable of 24-hour unattended operations.

With standby output interface, able to realize multiple units interlocking control and remote diagnostic control.

New-generation low-consumption and high-efficiency motor.

Large starting torque.

Insulation grade F and protection grade IP23.

With refueling device and capable of non-stop refueling.

Efficient air inlet valve.

ON/OFF control mode.

With check valve blowout preventing design.

Built-in oil separation system.

Built-in oil separation design guaranteeing oil and gas separation effects, reducing fuel consumption, and providing adequate assurance for the product quality from the initial design.

Good economics, easy maintenance and suitable for small power host machine.

It provides high-efficiency, easily maintained and more economic air system.


Technical Parameters of KAISHAN BK series screw air compressor

Model Pressure Capacity Power Outlet Noise Weight Dimensions
Mpa m3/min KW dB(A) kg mm
BK7.5-8G 0.8 1.2 7.5 G3/4 72 200 800*620*800
BK7.5-8G 0.8 1.1 880*510*800
BK11-8G 0.8 1.7 11 G1 280 1000*670*1090
BK11-8 0.8 1.7 250 700*670*1250
BK15-8G 0.8 2.4 15 73 280 1000*670*1090
BK15-8 0.8 2.4 270 700*670*1250
BK15-10 1 2.2
BK15-13 1.3 1.7
BK18-8G 0.8 2.95 18.5 74 350 1200*800*1120
BK18-10G 1 2.7
BK18-13G 1.3 2.2
BK22-8ZG 0.8 3.45 22 390
BK22-10G 1 3.2
BK22-13G 1.3 2.7
BK30-8G 0.8 5 30 G11/2 75 470 1340*850*1330
BK30-10G 1 4.4
BK30-13G 1.3 3.6
BK37-8G 0.8 6 37 76 560
BK37-10G 1 5.4
BK37-13G 1.3 4.6
BK45-8G 0.8 7.1 45 78 720 1480*1030*1365
BK45-8 0.8 7.1 640 1250*1055*1400
BK45-10 1 6.5
BK45-13 1.3 5.6
BK55-8G 0.8 10 55 80 790 1480*1030*1365
BK55-8 0.8 9.5 900 1545*1200*1470
BK55-10 1 8.5
BK55-13 1.3 7.4
BK75-8G 0.8 13 75 G2 81 1200 1800*1190*1710
BK75-10G 1 12
BK90-8G 0.8 16 90 1240
BK90-10G 1 14
BK110-8T 0.8 21 110 DN65 82 1630 2100*1230*1730
BK110-8G 0.8 1680
BK110-10G 1 20
BK132-8T 0.8 24 132 1670
BK132-8G 0.8 1750
BK132-10G 1 22
KS175A-8F 0.8 24 1470 1880*1250*1670
KS150-8-II 0.8 22 110 1950 2100*1230*1730
KS175-8-II 0.8 25 132 1990
