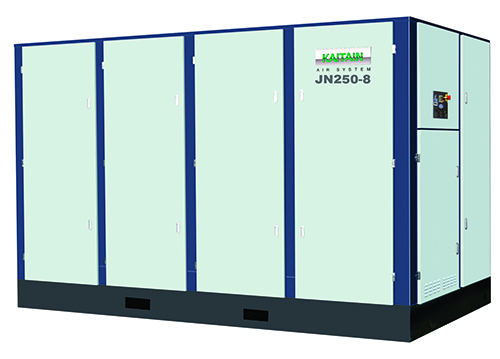

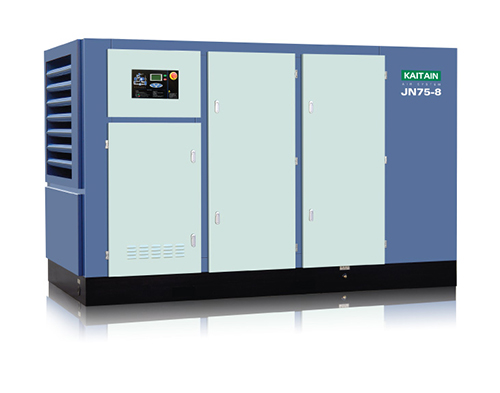

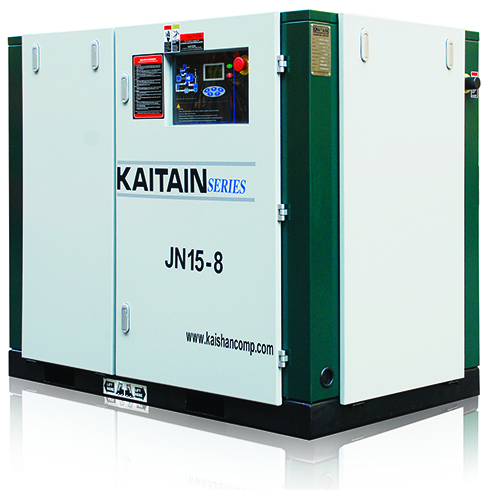

KAITAIN series energy-saving screw air compressor

Power:(7.5-400kw)

Cool Type: oil or air

Capacity:1.0-66m3/min

Wroking pressure:0.8/-1.3Mpa

Category: Air Compressor

Product Description

This screw air compressor is featured by excellent performance, very low noise, and high working efficiency.

Dozens of experts design the screw air compressor carefully in Kaishan North America Development Center by using their experience in development, manufacture and application for decades to provide a product with low energy consumption and high performance cost ratio.

KAITAIN series screw air compressor is easy to operation, convenient to maintain and provided with professional after-sale service.

KAITAIN screw air compressor operates at a soft voice and its low noise belongs to world first class.

Linkage control of multiple compressors: KAITAIN computer network monitoring system.

This system is specially developed computer network control and management software for controlling and protecting the operation of air compressor. It can be adapted to different customer requirements through different settings. The system consists of data acquisition, automatic control, network control, data storage, data query, report generation and system parameter setting, etc.

Technical Parameters of JN series screw air compressor

ModelWorking pressure
       (Mpa)
Capacity
       m3/min
Power
       (KW)
OutletNoised
       B(A)
Weight
       (kg)
Dimension
       (mm)
VSD weight
       (kg)
VSD dimension
       (mm)
JN22-8A0.83.8722G1685401370×900×11106001370×900×1110 (1370×900×1190
       Schneider)
JN22-10A13.3
JN22-13A1.32.42
JN30-8A0.85.530G11/2696501600×960×12207301870×960×1220
JN30-10A14.6
JN30-13A1.33.67
JN37-8A0.86.837G11/2697001600×960×12207801870×960×1220
JN37-10A15.42
JN37-13A1.33.72
JN45-8A0.88.545G11/2708801630×960×122010001960×960×1220
JN45-10A16.65
JN45-13A1.35.32
JN55-8A0.810.555G11/27010901850×1200×150012202010×1200×1500
JN55-10A18.47
JN55-13A1.36.5
JN75-8A0.814.575G27215502160×1220×158017002310×1220×1580
JN75-10A112.02
JN75-13A1.39.8
JN90-8A0.817.290G27220002160×1320×158021502290×1320×1580
JN90-10A114.35
JN90-13A1.311.9
JN110-8A0.821.55110DN657327002440×1400×171028502710×1400×1710
JN110-10A117.05
JN110-13A1.314.25
JN132-8A0.824.63132DN657428002440×1400×171029502710×1400×1710
JN132-10A121.35
JN132-13A1.316.95
JN160-80.829.35160DN807540003660×2060×228054503660×2060×2280
JN160-10125.25
JN160-131.321.12
JN185-80.833.56185DN807640503660×2060×228055003660×2060×2280
JN185-10129.22
JN185-131.325.14
JN200-8A0.833.56200DN807640503660×2060×228055003660×2060×2280
JN200-10A129.22
JN200-13A1.325.14
JN200-80.837.42200DN807642003660×2060×228059003660×2060×2280
JN200-10133.28
JN200-131.329.08
JN220-80.842.29220DN1007863003865×2225×230065504065×2225×2260
JN220-10137.11
JN220-131.333
JN250-80.846.55250DN1007865003865×2225×230073004065×2225×2260
JN250-10141.93
JN250-131.336.8
JN280-80.850.59280DN1258274004260×2260×226074504260×2260×2260
JN280-10146.08
JN280-131.341.51
JN315-8A0.850.59280DN1258274004260×2260×226075004260×2260×2260
JN315-10A146.08
JN315-13A1.341.51
JN315-80.855.95315DN1258274004260×2260×226076004260×2260×2260
JN315-8B0.855.95
JN315-10150.08
JN315-131.345.62
JN355-80.865.43355DN1258276004260×2260×226077004260×2260×2260
JN355-8B0.865.43
JN355-10155.12
JN355-131.349.58
JN400-80.874.31400DN1258276004260×2260×226077504260×2260×2260
JN400-8B0.874.31
JN400-10164.46
JN400-131.358.07
