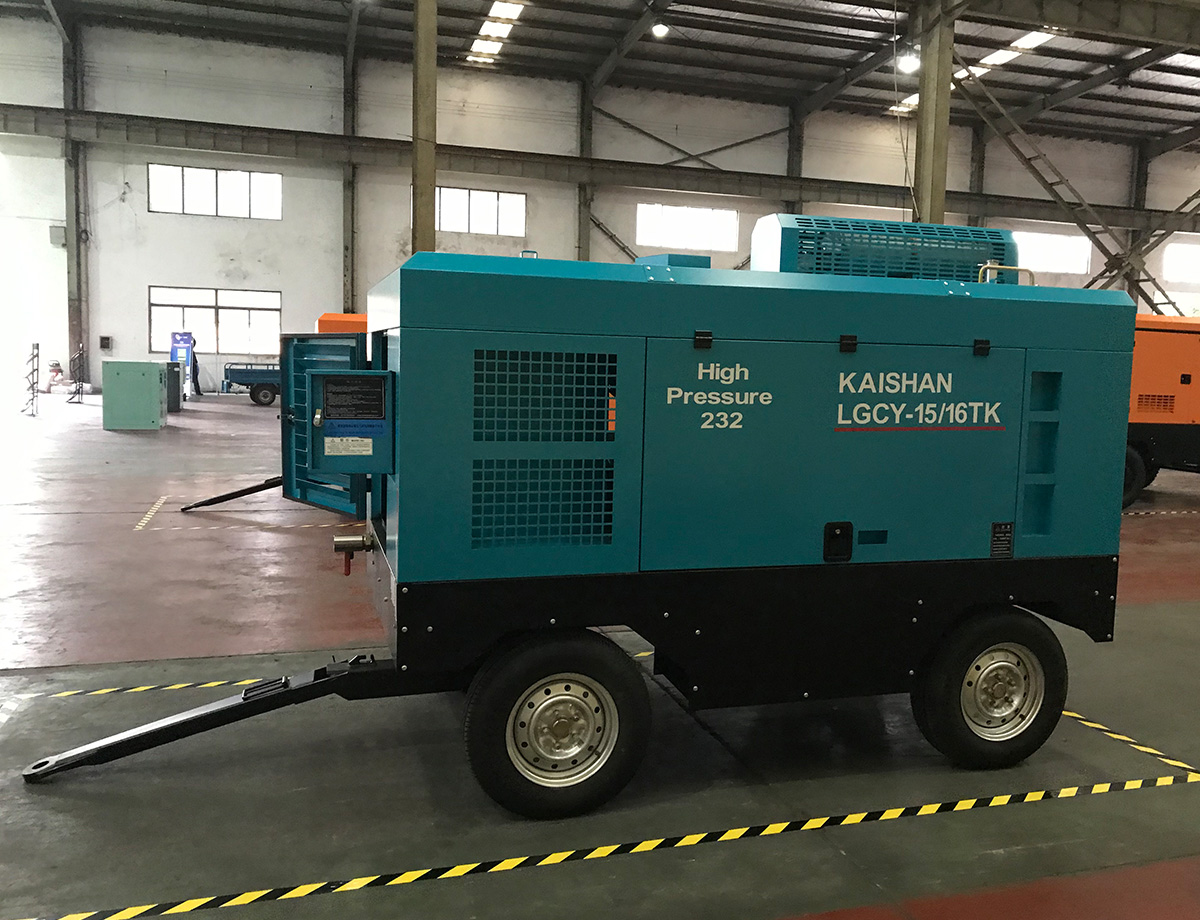

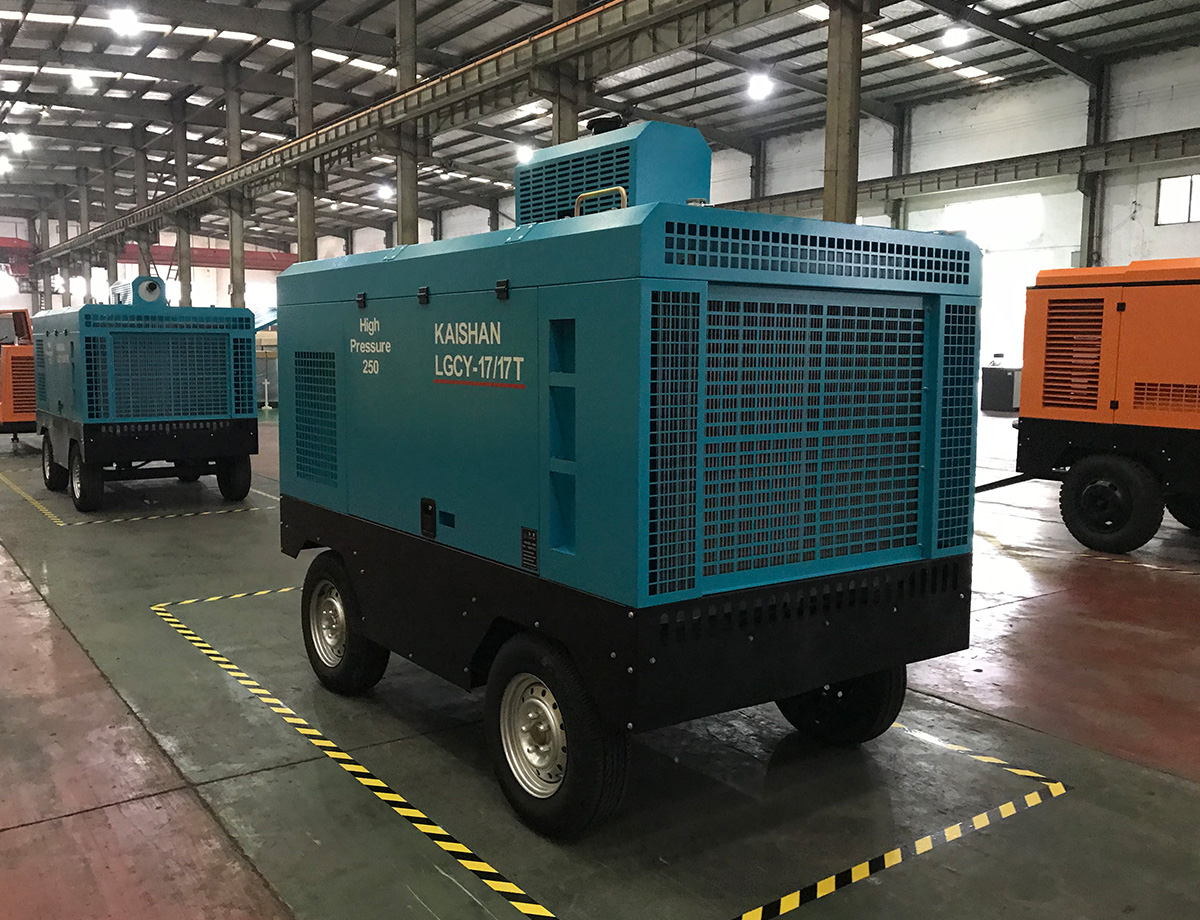

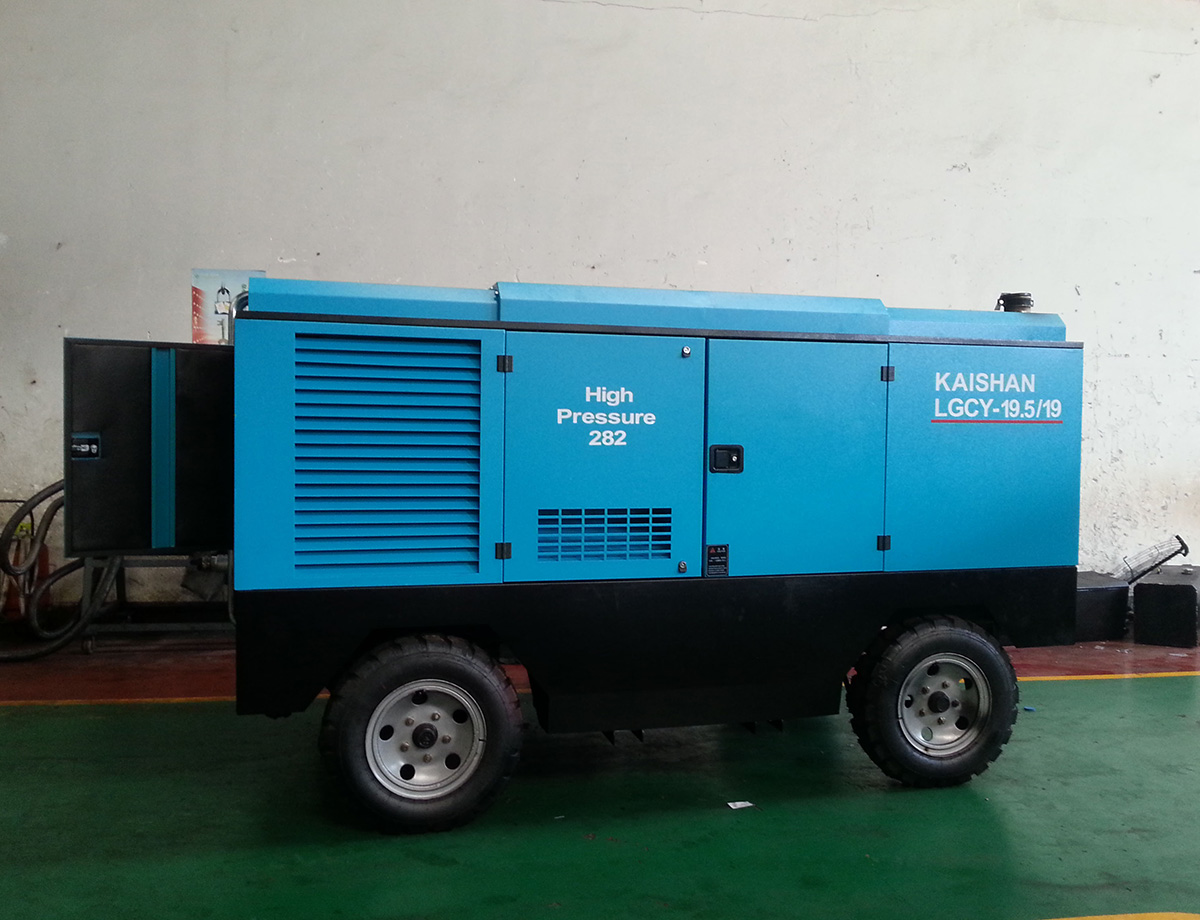

Kaishan high pressure series mobile screw air compressor: saving oil for 100L every day!

Triple air filter system / Triple oil-gas separation system.

Lubricating oil filter with precision of 10μ, Efficient cooling system.

Axial-flow inlet valve, Fully closed chassis and quiet housing design.

With single-point lifting ring on the top, it is easy to handle; heavy duty mobile chassis.

Microcomputer control system interface; Special lubricating oil for compressor.

SKY2 Patent Compressor:

It is designed as per the highest pressure 40bar.

Rotor profile: SKY patent rotor profile of the second generation with high pressure, large Capacity and the highest efficiency.

Two-stage compression: global invention patent with flexible design corresponding to lift valve.

Heavy duty design, SKF bearing, and direct-coupled drive without noise in the gear.

Optimal structure and the highest reliability.

It is designed with switchable double working conditions, so that, for example, users can chose the operation at 33m3 and 25bar or at 25m3 and 35bar, and the switching is easy and fast.

Heavy duty electronic injection diesel engine

Fuel speed regulating system: electronically controlled high-pressure common-rail.

It is supported by Commins, Yuchai and other brands of heavy duty electronic injection diesel engine. The fuel-injection quantity is precisely and electronically controlled according to the loading condition to keep the engine in the best burning state during the whole operation. The product is highly reliable with strong dynamic property and optimal fuel economy performance.

Standard Configuration

SKY2-40 patent compressor.

Heavy duty electronic fuel injection engine.

Compressor controller.

Quiet housing.

Environmental friendly and fully closed chassis.

Heavy duty air filter.

Large capacity fuel tank.

Optional configuration

Compressor with double working condition.

Diesel engine.

After-cooler.

Steam-water separator and drain valve.

Fuel heating system.

Remote monitoring system.

Specification of of KAISHAN LG High Pressure Diesel Portable Screw Air Compressor
